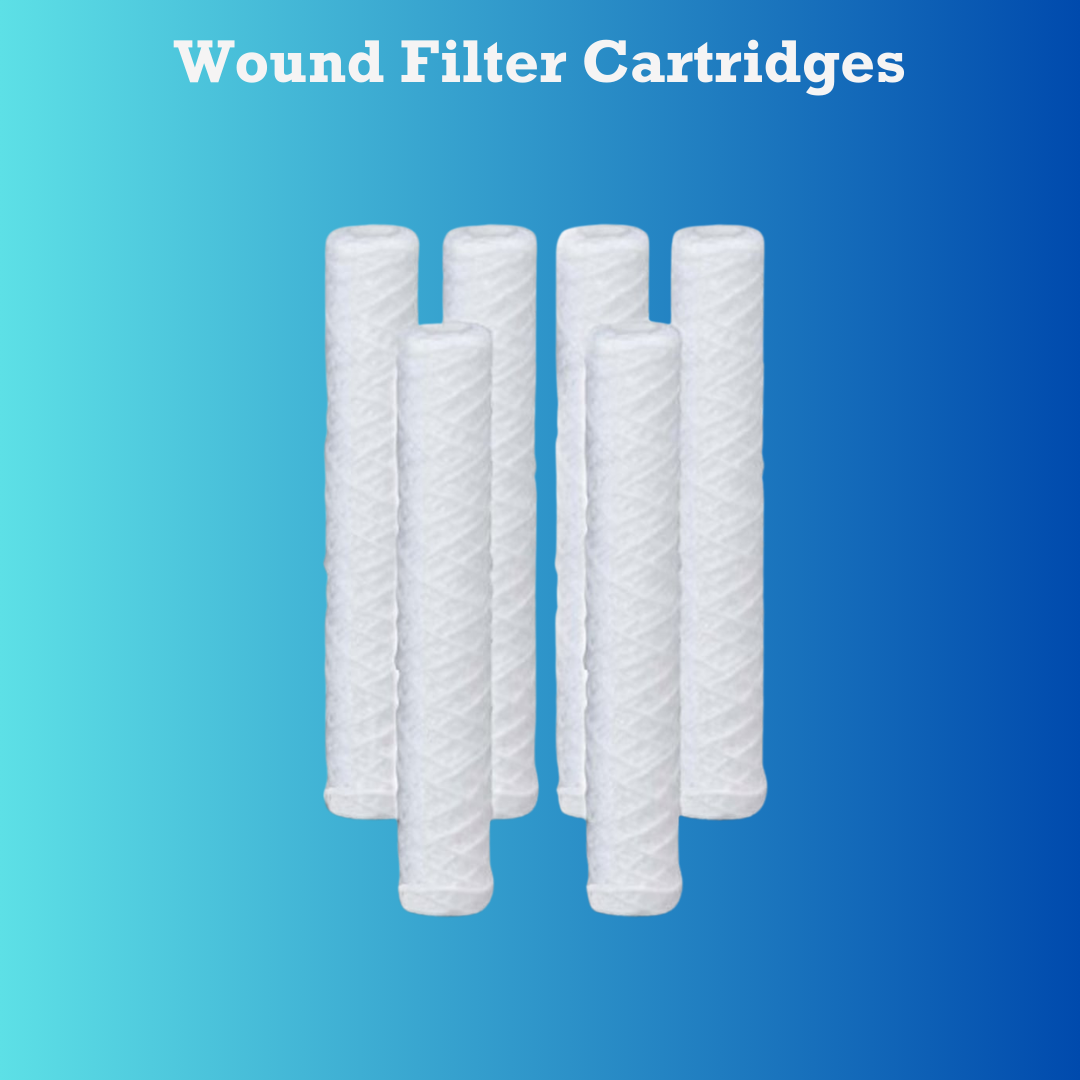

Wound Filter Cartridges
Get Precision Filtration with Wound Filter Cartridges from TTI
Wound filter cartridges are precision-engineered filtration solutions designed to remove sediments, particles, and impurities from fluids with high efficiency. Manufactured using premium-grade materials like polypropylene, polyester, and cotton, these cartridges are ideal for diverse industrial and commercial applications, ensuring reliable depth filtration and enhanced process performance.
What Are Wound Filter Cartridges?
Wound filter cartridges are depth filters created by tightly winding yarn around a core in a honeycomb-shaped structure. This gradient density design ensures that larger particles are captured on the outer layers while finer particles are filtered near the core, maximizing filtration efficiency and extending the cartridge’s life.
Features and Benefits of Wound Filter Cartridges
Graded Density Filtration: Gradient structure captures particles of varying sizes, enhancing dirt-holding capacity and efficiency.
High Chemical Compatibility: Suitable for a wide range of chemicals, including alkalis, dilute acids, organic solvents, and potable liquids.
Durable Construction: Manufactured with high-strength cores (polypropylene, stainless steel, or tinned steel) to withstand pressure and temperature variations.
Superior Performance: Provides low-pressure drop, ensuring optimal flow and reduced energy consumption.
Cost-Effective Solution: Extended filter life reduces maintenance and replacement costs over time.
Environmentally Friendly: Made without surfactants, binders, or adhesives, ensuring contamination-free filtration.
Technical Specifications
| Parameter | Details |
|---|---|
| Core Materials | Polypropylene, Stainless Steel, Tinned Steel |
| Yarn Materials | Polypropylene, Polyester, Cotton, Glass Fiber, Nylon, Rayon |
| Micron Ratings | 0.5, 1, 5, 10, 25, 50, 75, 100 |
| Lengths | 5", 10", 20", 30", 40", 50" |
| Inner Diameter | 28 mm (± 0.5 mm) |
| Outer Diameter | 63 mm (2.5"), 114 mm (4.5") |
| Maximum Operating Pressure | 5 Bar |
| Flow Rate | 2,000 LPH at 2 Bar |
| Maximum Temperature | Up to 200°C (varies based on material) |
Applications
Wound filter cartridges are versatile and used across various industries:
Water Treatment: Pre-filtration in reverse osmosis systems, resin traps, and potable water systems.
Pharmaceuticals: Base product clarification, sterile filtration, and membrane pre-filters.
Food & Beverage: Filtration of syrups, flavors, and process water to maintain quality and hygiene.
Chemicals: Handles solvents, acids, alkalis, and organic liquids.
Petrochemicals: Filters completion fluids, water floods, and amines.
Electronics: Ensures precision filtration for etching, electroplating, and image development.
Metal Finishing: Ideal for plating solutions, paints, and resin products.
Configuration Options
Double Open End (DOE)Standard design for general applications.
Code 7 (226 O-Ring)High-pressure seal for demanding industrial environments.
Code 3 (222 O-Ring)Tight sealing suitable for sensitive filtration systems.
Why Choose Technical Textiles India?
Proven Expertise: Decades of experience in advanced filtration solutions.
Tailored Designs: Customizable specifications to meet unique application needs.
High-Quality Materials: Premium yarns and robust cores ensure reliable performance.
Cost-Effective Solutions: Long-lasting cartridges reduce operational expenses.
Comprehensive Support: Expert guidance and after-sales assistance.
Wound Filter Cartridges from Technical Textiles India
Upgrade your filtration systems with wound filter cartridges from Technical Textiles India. Contact us today to explore our range of high-quality, customizable filtration solutions tailored to your specific needs.
